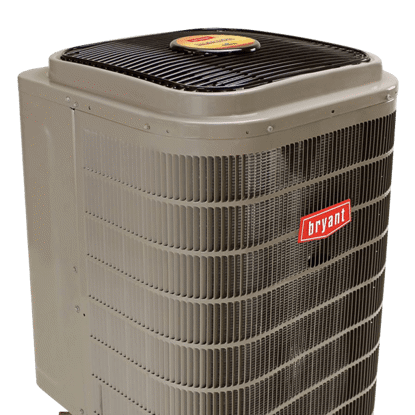

Evolution Series Air Conditioners

The Evolution V air conditioner offers high-efficiency variable speed performance in a remarkably small cabinet and provides up to 19 SEER cooling efficiency. The variable speed inverter capacity control delivers up to 5 stages of operation for exceptional load matching, dehumidification and zoning performance.

This product has been designed and manufactured to provide flexible system matching and work with a wide variety of indoor units and controls.

STANDARD FEATURES

ENERGY EFFICIENCY

• Up to 19 SEER / Up to 13 EER
• Microtube Technology™ refrigeration system

SOUND

• Sound level as low as 56 dBA in low speed
• Soft start and smooth ramp to operating speeds

COMFORT

• Variable speed compressor operates at 5 stages with capacity range from as wide as 25-100%
• Air cooled Inverter variable speed drive
• System requires Evolution® Connex™ Control with compatible software for 5 stage
• operation
• Ratings provided with 2-stage thermostats and suitable non-communicating indoor
• products for 2-stage operation.

RELIABILITY

• Puron® refrigerant - environmentally sound, won’t deplete the ozone layer and low lifetime service cost.
• Front-seating service valves
• Inverter control drives compressor and fan motor
• No control module attached to fan motor
• Evolution intelligence monitors critical system parameters
• Pressure equalizer valve for easy compressor starting
• High-pressure switch
• Suction pressure transducer
• Compressor discharge temperature sensor
• Suction temperature sensor
• Filter drier (field installed)
• Internal crankcase heater standard
